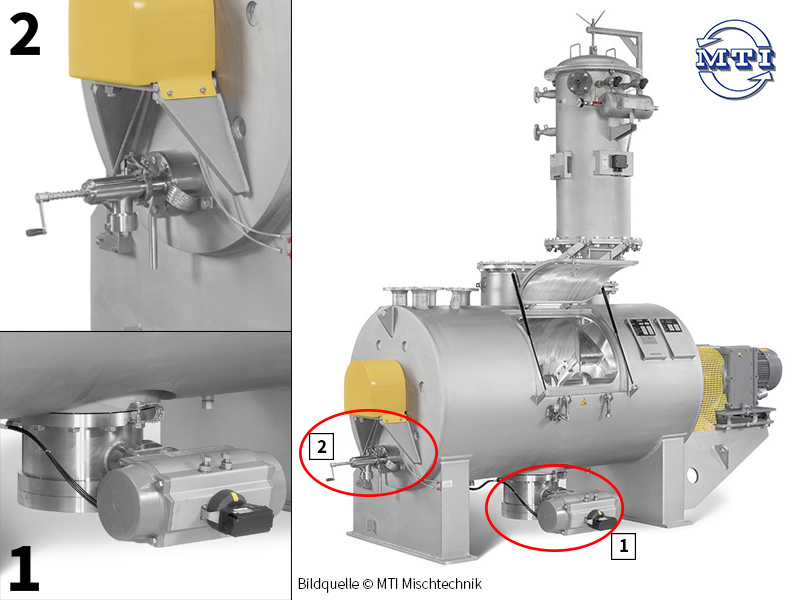

ATEC supplied the following custom ball valves for a horizontal universal mixer manufactured by MTI Mischtechnik:

Applications: Rubber & Plastics, Chemicals, Automotive, Pharmaceuticals & Food for mixing, dispersing, granulating, coating, heating/cooling, and drying products

1. Bottom drain ball valve, Type BS DN300/200 PN10

• Sump-level connection to the inner
wall of the tank• Dead-space-free design to prevent product buildup inside the
housing• Metallic-sealed design according to Leak Rate A (0 bubbles)
• Angled actuator shaft for easy automation•
Automated with a double-acting pneumatic rotary piston actuator including limit switches

2. Sampling ball valve DN50 PN10 Type PRF for solids with discharge screw

• Low-dead-space connection to the
inner wall of the container• Dead-space-free design to prevent product buildup inside the
housing• Clean and easy removal of solids via a screw conveyor mounted on the ball valve using a quick-connect coupling.

› Clean, simple, and safe sampling›
No
need to scrape out product residues› Quick disassembly of the screw
conveyor› Easy cleaning of the screw conveyor
